Q2P uses proprietary external combustion technology to provide an elegantly simple solution for the vast number of smaller biogas-producing sites. Our containerized, modular system – from 10kW to 250kW – adapts to the variances found in waste fuels without costly pre-treatment or emissions controls, which saves money over the life of a project.
Q2Power’s proprietary system “harvests” waste biogas from waste water treatment facilities, landfills and livestock farms. Through an external combustion process, Q2Power converts these under-utilized resources into clean, green electricity for use at the host facility or back to the grid. Heat recapture can also be used for industrial processes – a robust Combined Heat & Power solution.
Engine |

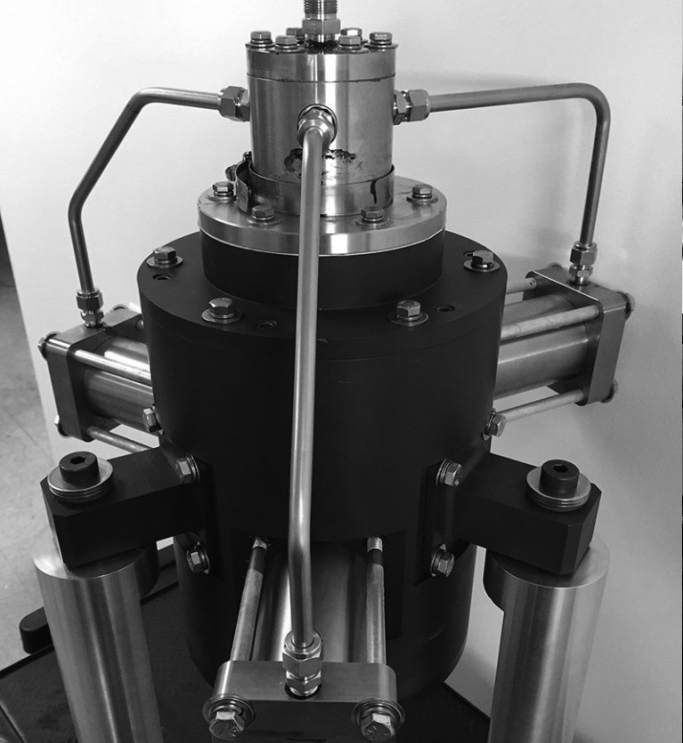

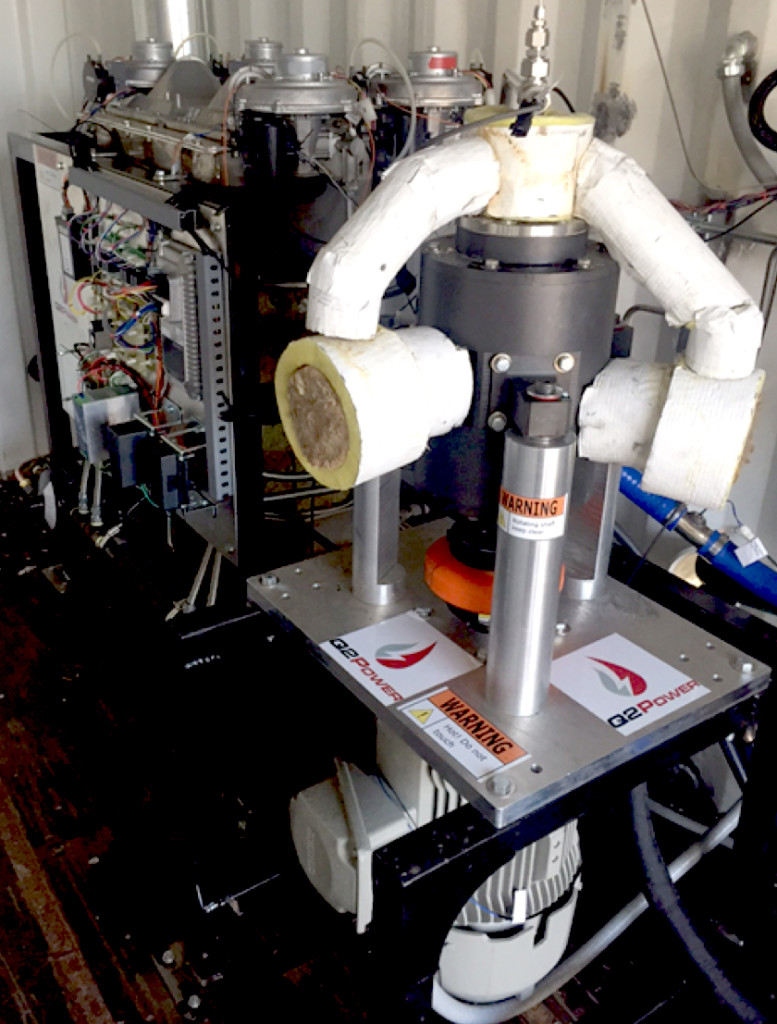

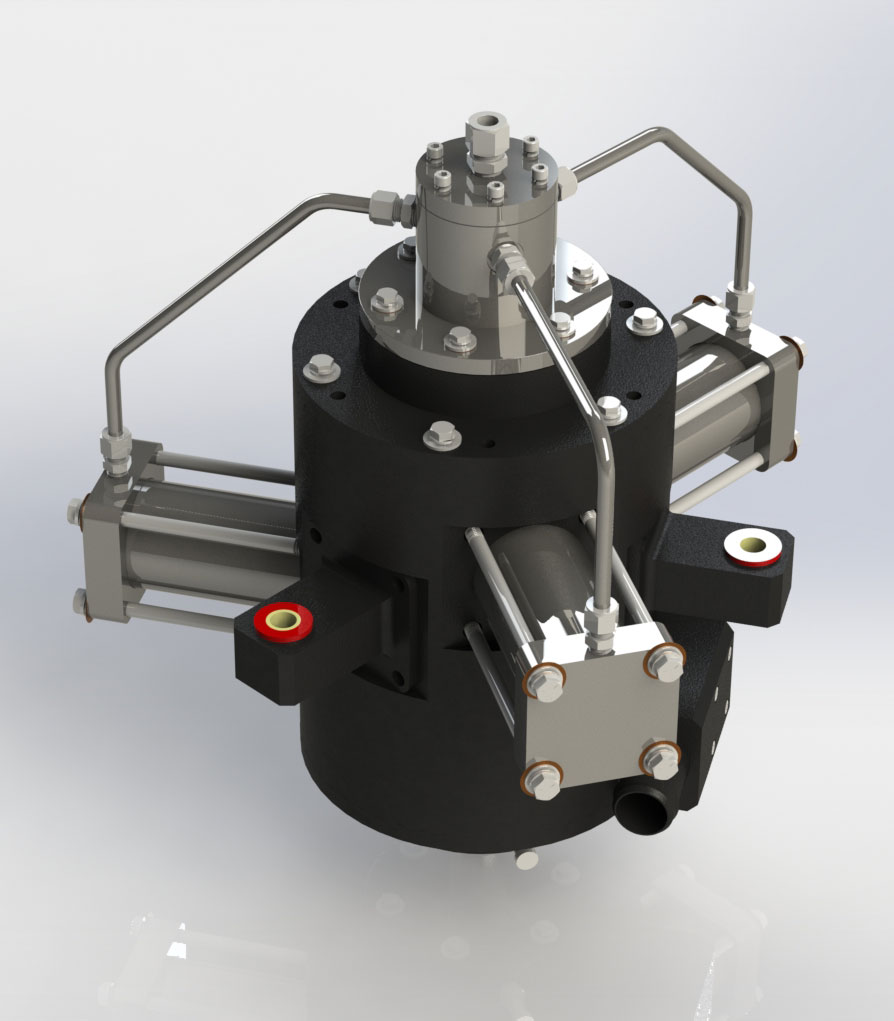

The core of Q2Power’s solution is its patented external combustion engine. Scalable from 20HP up to about 60HP, this radial format piston engine uses high pressure steam as its working fluid, and is capable of operating through wide temperature fluctuations. |

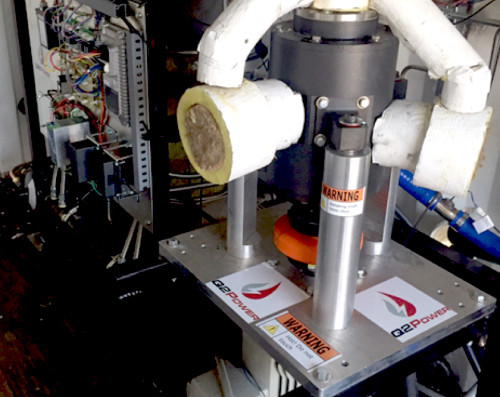

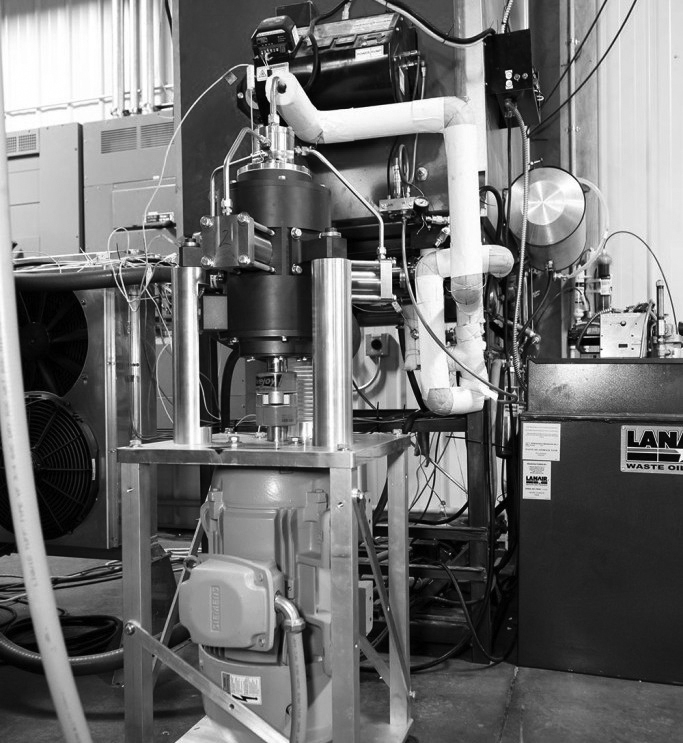

Engine and Generator |
The Q2Power engine drives any number of variable speed and induction motors, with strong turn-down and throttling capabilities to match loading and fuel input variances. |

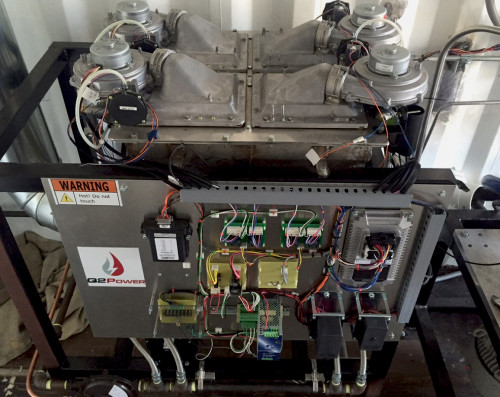

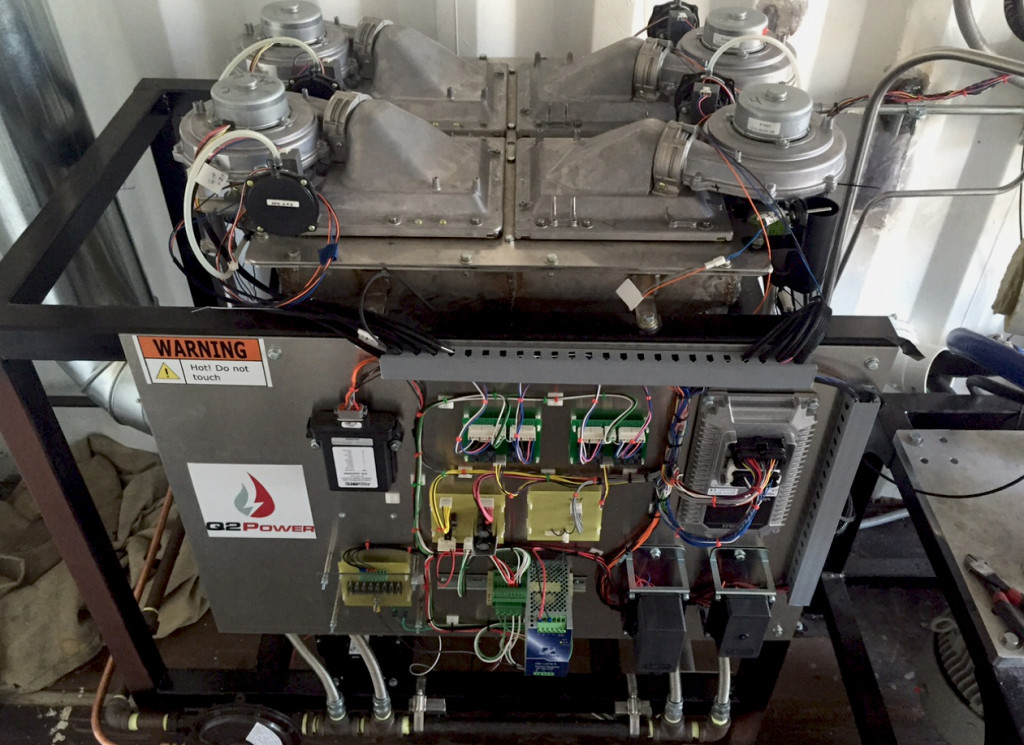

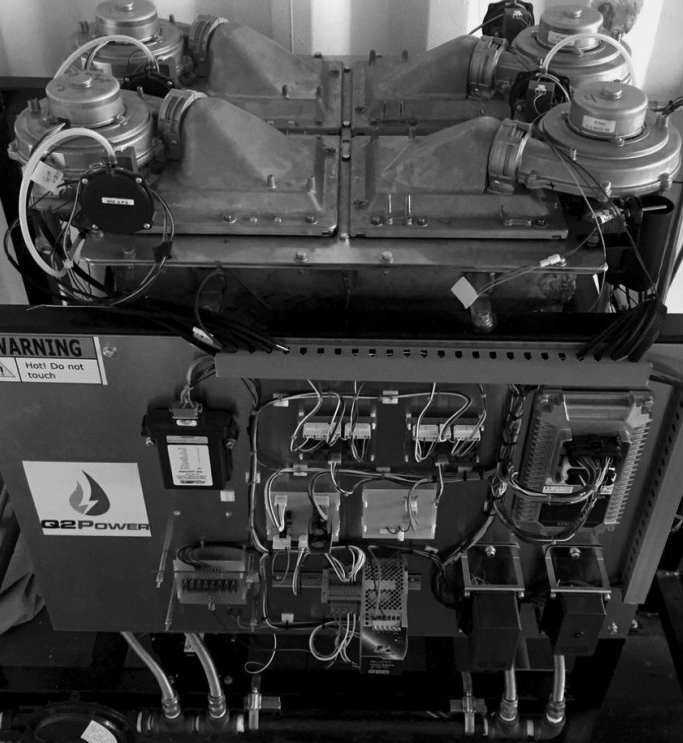

Combustor |
The Q2Power proprietary combustor can handle untreated wet or dry biogas down to approximately 40% methane composition, with up to 99% methane destruction. |

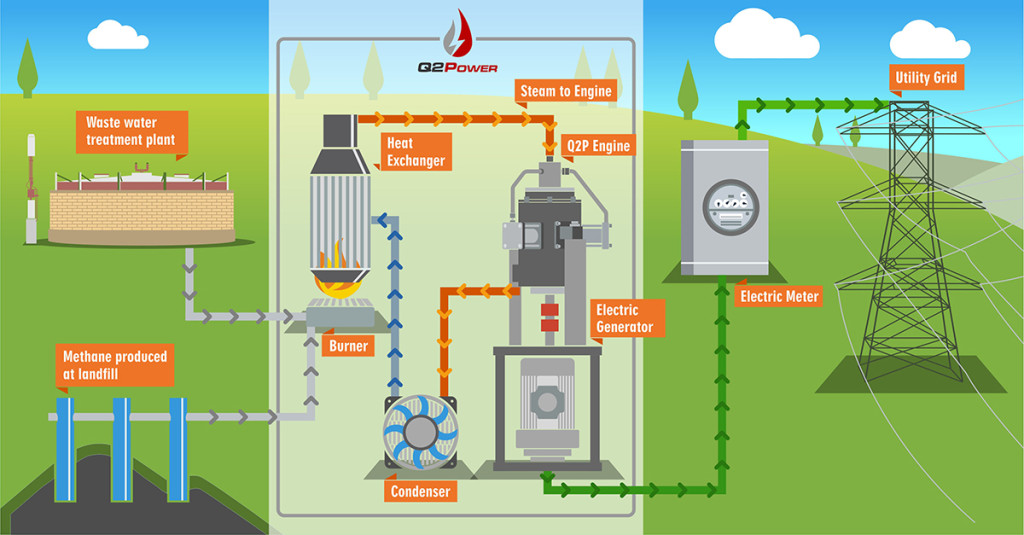

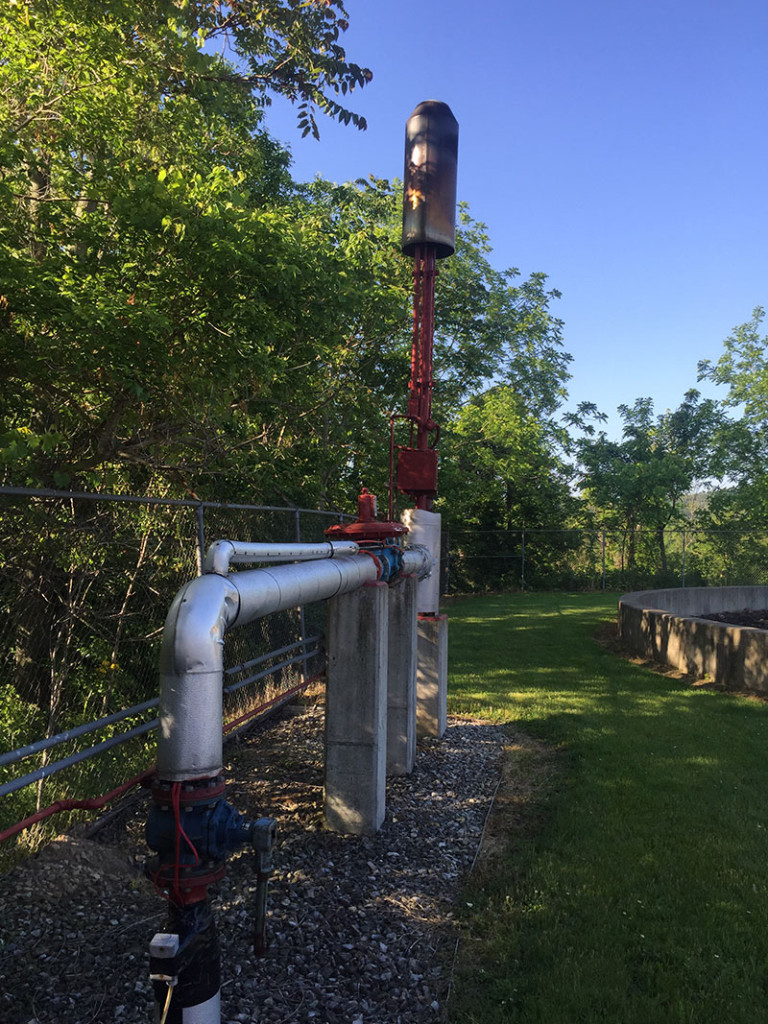

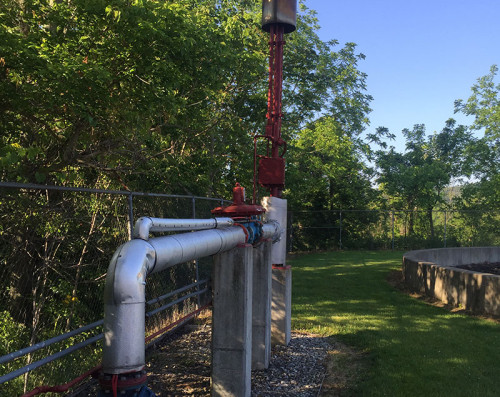

Biogas from waste water treatment plants and landfill is often “flared” to dispose of it. Instead, Q2P redirects this fuel to our system.

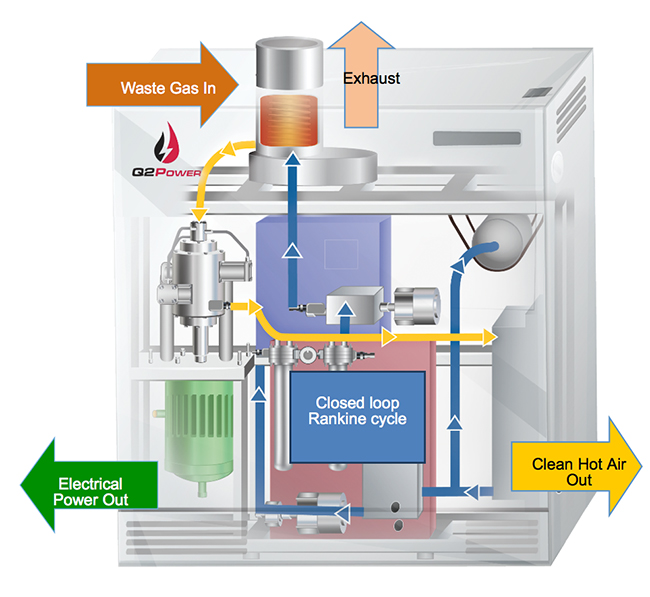

Heat from biogas combustion creates steam that our engine uses to generate mechanical power. Steam condenses and returns to the start of the process.
Q2P’s engine turns an electric generator connected to the grid. The power created off-sets the facility owner’s baseline and peak grid requirements.

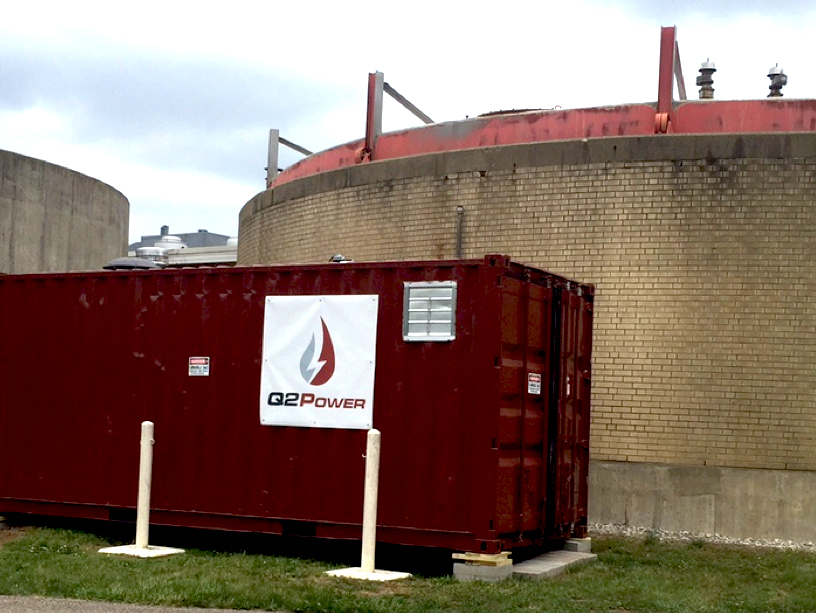

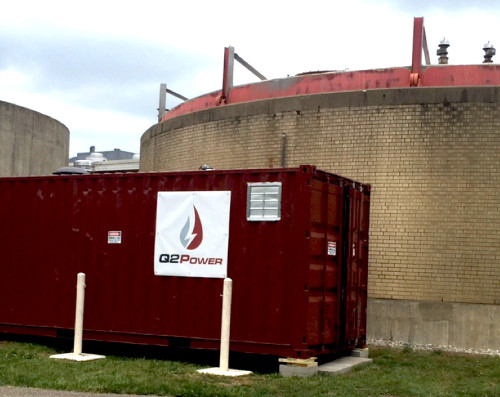

Q2Power’s first pilot installation is located at the Waste Water Treatment Plant, in Lancaster Ohio. This facility processes approx. 5 million gallons / day of sewage for the local community. In the past, no other power solution worked for them – nothing existed in the scale they needed to provide an economical solution.

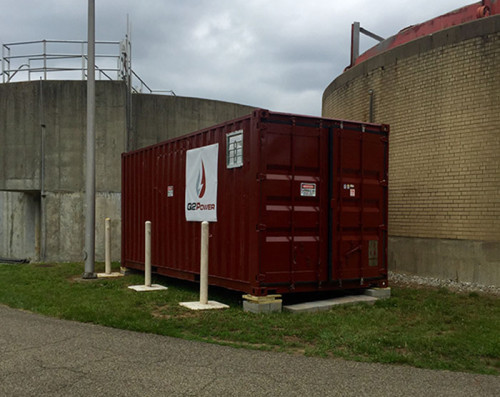

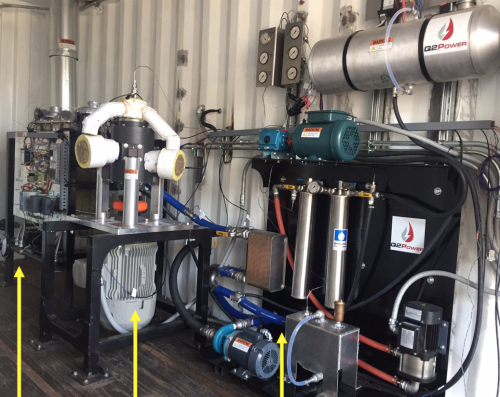

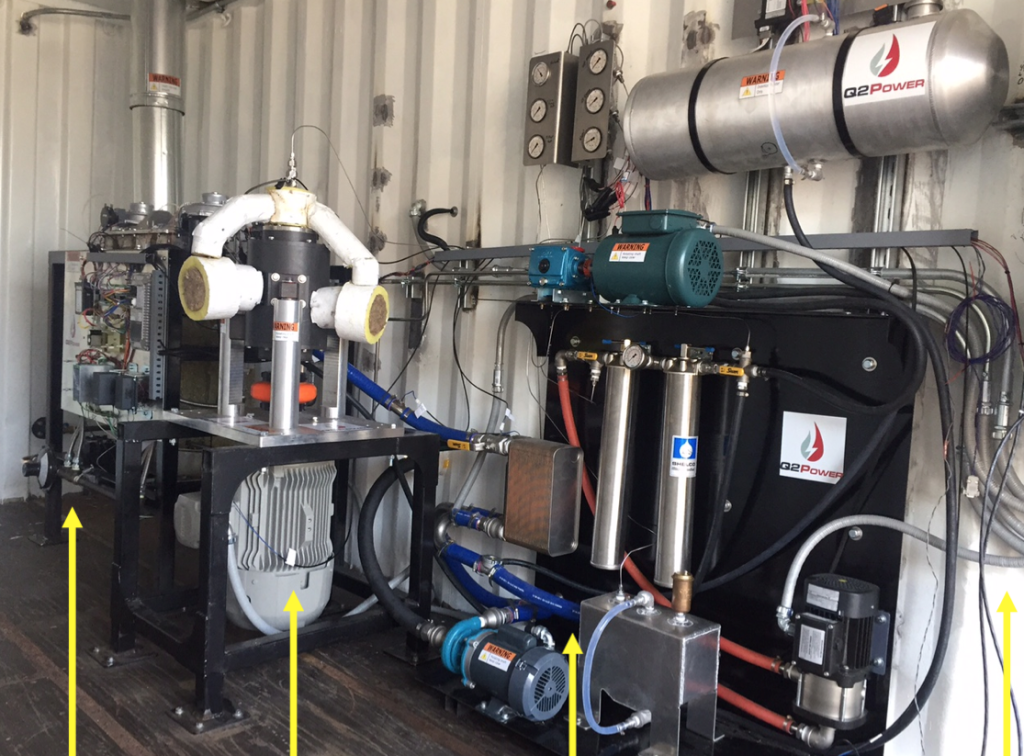

Our entire engine / methane combustor system, instrumentation, controls, and associated gas and power lines have been installed in a 20’ intermodal container. It generates up to 10kW of power, and in the next phase, will recycle exhaust heat to be used to warm the bio-digester. This second step can replace a 50 year-old boiler that needs constant maintenance.
To see if a Q2Power system is right for your facility, contact us.
The Q2Power model M10 is a 10 kW (AC) distributed generation system. This compact, modular unit converts biogas and other waste gaseous fuels produced into renewable electrical power that can offset grid usage and demand charges. Multiple M10 units can be combined to generate greater electrical output in a single system. Larger engine systems — up to 30kW per module with multiple mods per container — are being planned currently.
The M10 solves the environmental issues of biogas discharge by fully and efficiently combusting and oxidizing hydrocarbon based fuels. Q2Power’s units require minimal gas pre-treatment, no emissions controls, and can be located at the site where gas is produced and typically flared.
| Power Output | Up to10kW@380-500V/ 3phase /50Hzor60 Hz. Multiple units can be combined and larger engine size (30kW) in development. |
| Unit Dimension | L 78” / H 62”. Ht. @ burner top 98” / W 40” |
| Enclosure | 20 foot intermodal, steel shipping container, 20’ x 8’ x 8’ (can house multiple M10 units) |
| Energy Block | Patented steam cycle piston engine |
| Generator Output | Grid-tied induction generator with anti-islanding |
| Fuel Emissions | Methane, Biogas, LFG, Flare Gas, Waste Gas w/ 99% destruction / oxidation of hydrocarbons 45% methane or higher |
| Working Fluid | Deionized water, closed-loop |
| Heat Source | Proprietary evaporator coil |
| Steam Temp | 500° F – 700° F |
| Cooling Source | Self-contained / air to fluid condenser |
| Lubrication | Water lubricated via its working fluid |
| Operating RPM | 1,800 rpm nominal, variable speed induction generator |
| Controls | PLC, and remote monitoring |
| Safety | Safety interlocks for gas, combustion & mechanical. IEEE 1547 compliant |
